Home  /  MS611 – Tester for power steering system
MS611 – Tester for power steering system

  • MS611 – Tester for power steering system

  • Lượt xem: 610 ,từ ngày 22-01-2019

  • Sản phẩm này đã hết hàng...!

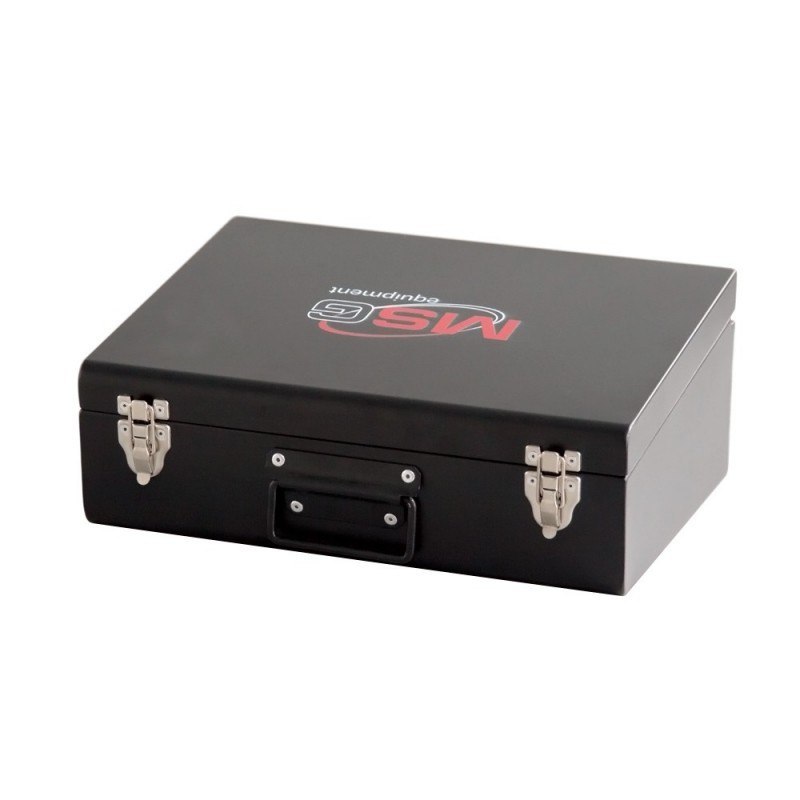

Tester for diagnostics of power steering system. The device is connected to a high-pressure line to measure performance of hydraulic system elements. The testing is carried out inside of a car without dismounting of units.

Đặt Hàng

DETAILED DESCRIPTION

Features:

  • meets the latest requirements of contemporary service centers
  • simple operation
  • long-lasting service
  • safety and reliability
  • 1 year warranty

The equipment set includes:

  • tester
  • set of fittings
  • 2 high-pressure hoses
  • user manual

How to test power steering system?

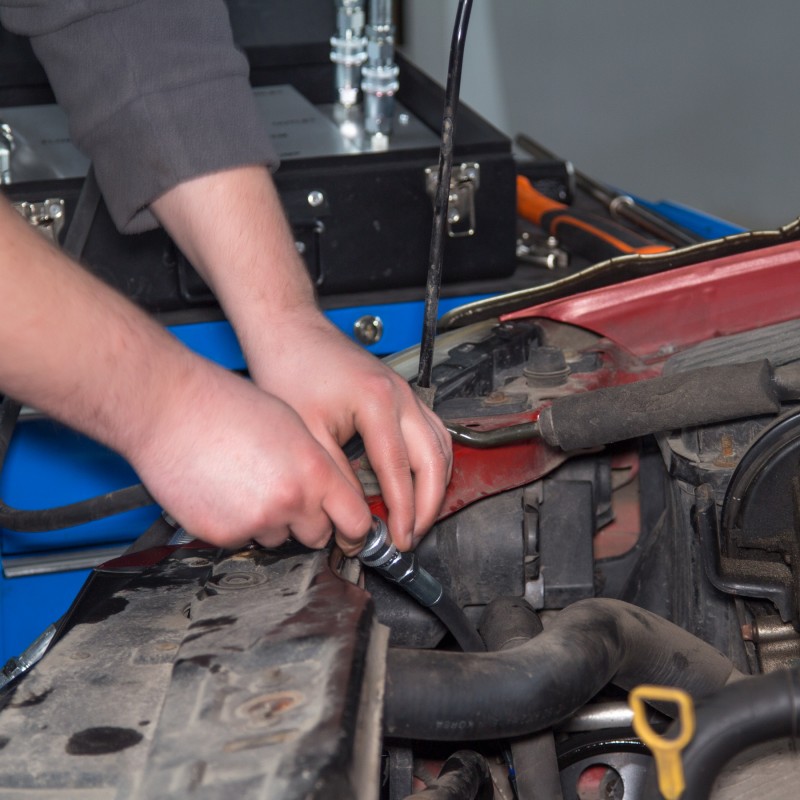

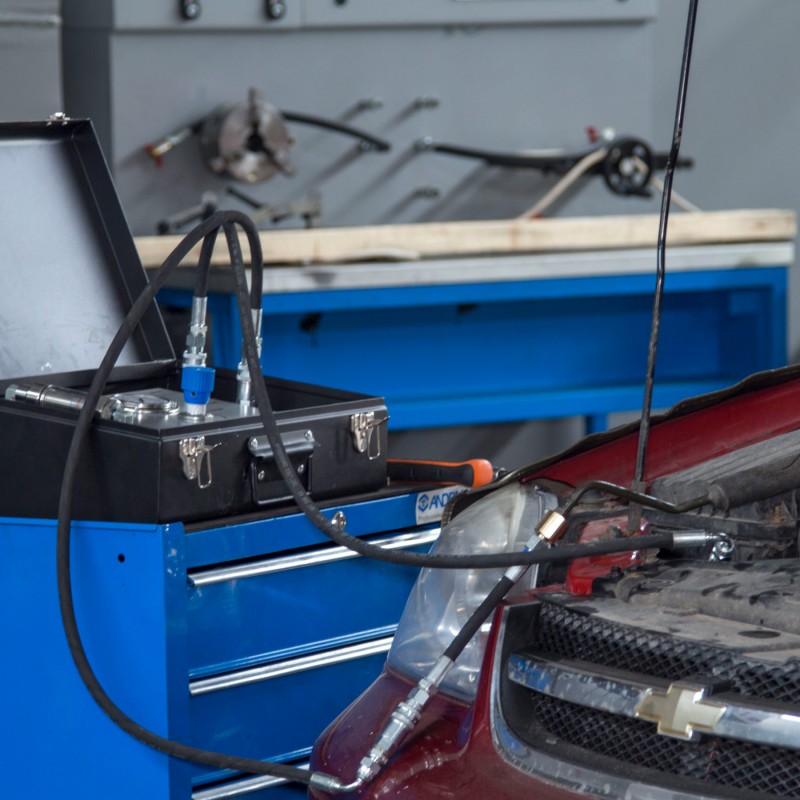

  1. Connect the tester to the pump and high-pressure line. Disconnect high-pressure line from the pump, fix the reducing fittings in the pump and line. Then connect quick disconnect couplings to high-pressure hoses of the tester.
  2. Start the car engine.
  3. Test 1. Fix the switch in SYSTEM position. Measure pressure and flow in car hydraulic system.
  4. Test 2. Fix the switch in PUMP position for 5 seconds, the manometer indicates maximum pressure, generated by the pump, while flow reduces to 0.
  5. Test 3. Fix the switch in SYSTEM position. Rotate the steering wheel to the left or right extreme position. Measure pressure and flow in car hydraulic system.
  6. Test 4. Fix the switch in SYSTEM position. Rotate the steering wheel to extreme left and then to extreme right position. Measure pressure and flow in both positions.
  7. Stop the car engine.
  8. Disconnect the tester.
